Virtek Iris 3D with Process Monitoring revolutionizes manufacturing with digital data of every assembly step and insightful analytics through customized reporting on processing dates and times. Ensure full traceability and optimize efficiency like never before.

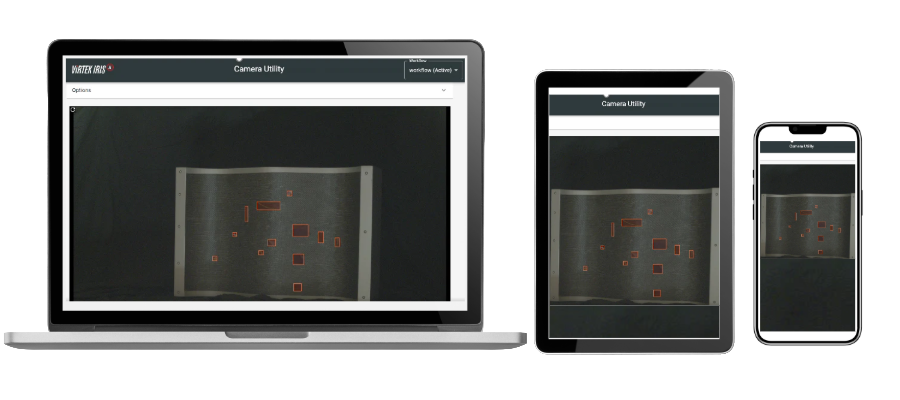

Create visibility at every stage of the assembly by capturing images in high definition colour, for process monitoring.


The new IRIS Ai Camera offers:

• Digital data for permanent quality records
• Verify part process completion
• Capture data analytics for every action taken in the work order and export PDF report

Ask us about our Free 60-day trial of the IRIS Ai software, plus receive an Ai Camera for duration of the trial.

*limited time offer Inquire for 60 Trial here

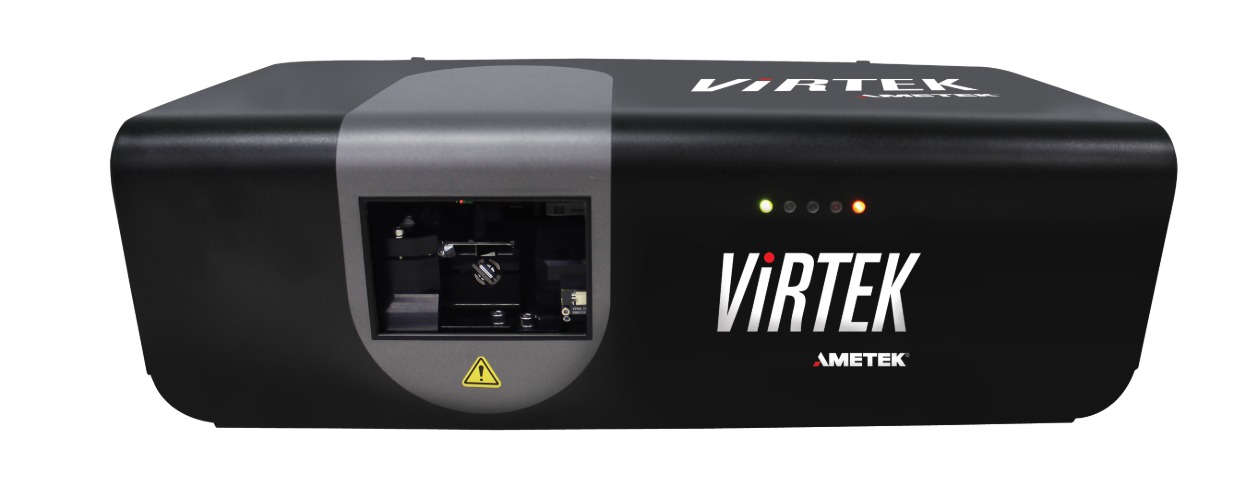

**Add on to existing Virtek laser projection and vision positioning systems.

Enhanced CAD Visualization:

Visualize your project before you build by selecting your part or component in the CAD viewer and it will be highlighted on your workpiece by the laser outline.

Integrated Authoring:

Operators gain the ability to create, edit, and tailor Work Orders to specific needs, enabling precise control over assembly processes for increased efficiency and accuracy. Import CAD models from a wide variety of sources

Integrated Auxiliary Information:

Seamless integration of PDFs, images, videos, and documentation directly into the workflow, providing critical information when it's needed the most.

Effortless Workflow Control:

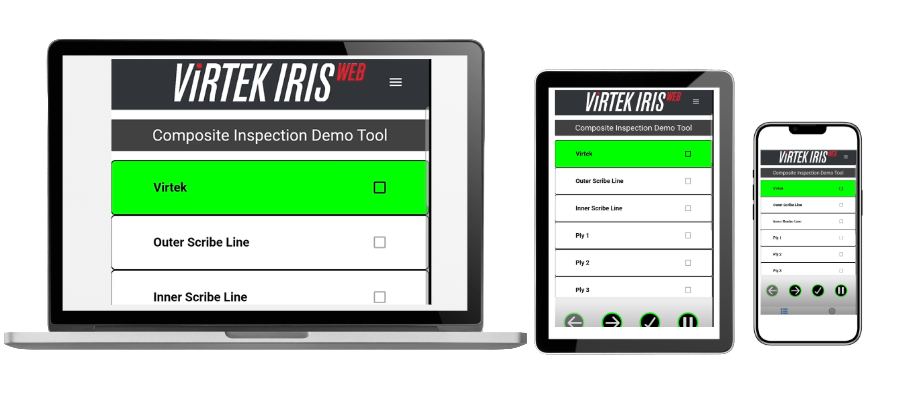

Introduction of a new mobile app for complete work order control, making task management easier and more efficient right at your fingertips.

Increased Operator Productivity:

Providing essential information and tools at the right time and place to boost operator productivity and efficiency in assembly processes.

The newest edition of its Iris 3D software includes new ways to manage operator actions within the workflow and provides Improved usability:

Process Control: Limits navigation to require each step in the work flow to be completed in sequence

Mark Complete: Ability to create a formal record of completion of a step in the work flow

Strict Mode: All previous steps must be complete before displaying the next step in the workflow

Work Order Persistence:  When a work order is partially completed and closed, upon opening the work order a second time, the Operator is returned to the same position in the work flow.

Troubleshooting Tools: Reset event broker configuration (RabbitMQ)

Countdown timer: An on-screen countdown timer for use with vacuum bagging during composite fabrication and debulking ply buildups.

Eliminate Operator errors with opening work orders and selecting steps within the workflow.

Always open the right work order and project the correct ply.

Open a specified Work Order

• Close the current opened Work Order
• Move to Next / Previous (projection) step in workflow
• Move to a specified (projection) step in the workflow

Simply scan a printed code

• Simplify barcode / QR code integration with Iris CodeReader
• Run software, configure & close (remains in taskbar)
• Print barcode or QR code
• Supports most Zebra scanners

The newest edition of its Iris 3D software with enhanced API (Application Programming Interface), supports a new level of interactivity, control and access to detailed production data.

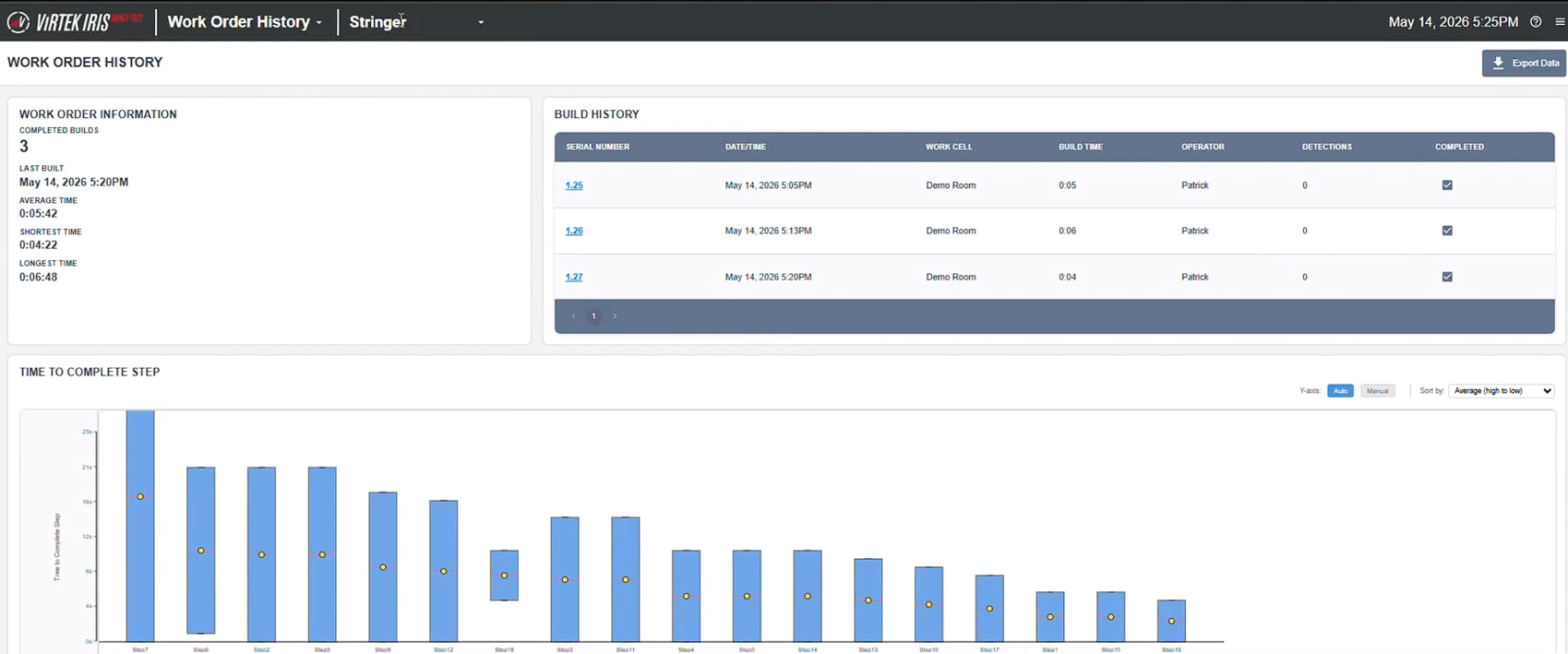

Production Reporting Database
This enhancement includes a production reporting database. Accessed through the Iris API, the production reporting tools provides instant remote access to current production status or retrieve historical data detailing the completion of each step in any production workflow executed in the past for any system on the floor. Developers working with the API have access to functioning sample code and a web UI documenting each method that even supports live testing of each call.

Data Security
Iris 3D work orders can now be created in a way that allows customers to maintain their version-controlled files in a secure read only repository separate from Iris working directories. This ensures data security for these critical files and allows easier version management.

Unlock the Powerful Toolset
Using the Virtek’s Vision Positioning System (VPS) to find and measure a targeted tool anywhere within its field of view and report the position of the tool relative to the vision system.

Or the ability to spontaneously project any geometric shape onto a surface without any pre-configuration or file setup.

NEW REAL-TIME TRACKING SOFTWARE WITH VISION SYSTEM!
Virtek’s newest software, Iris™ ActiveTrack helps manufacturers complete inspection and assembly tasks effortlessly on moving parts.

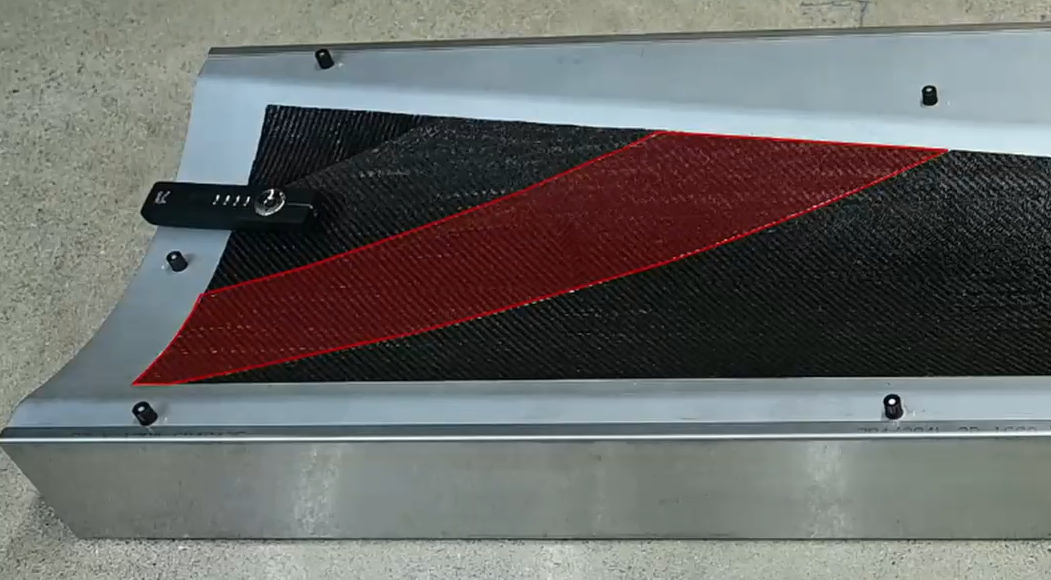

Iris™ ActiveTrack is able to project a stable, accurate laser line directly onto a moving surface, in 3D, to provide operators with the information needed to get the job done more efficiently. Complete inspection and assembly tasks effortlessly on moving parts.

Find out more:

• How the new IRIS™ ActiveTrack software is used to complete inspection and assembly tasks effortlessly on moving tools.
• How to Inspect Automated Fiber Placement (AFP) ply boundary while a tool such as a mandrel is in motion.
• How operators can gain more productive time during inspection, component assembly or manual layup processes.
• How to overcome shadowing in confined workspaces.
  Contact us today to book an online remote demonstration.

Make it easy to guarantee the most accurate target alignment in spite of difficult real world conditions

Manual Clipping - Working with complex geometries? Avoid shadowing/occlusion with complex mold shapes.

Pause/Resume - Extend the life of your projector. Maintain position in workflow following a break.

Skip Target - Receive more robust alignment and complete scan successfully even with missing targets.

Required Targets - Ability to define targets which MUST be measured for successful alignment.

Random Rescan - Allow a rescan of any single target with poor alignment.

Multi-Select - Easier editing of large target lists.

Large Target Display - Improved visibility for the operator of target labels from a distance.

Adapt to changes quickly with more flexible work cell configurations.

Work Order Sorting & Filtering - Open work orders faster and with higher accuracy with filtering options to find existing orders easily.

Work Order Service - Improved security & ease of installation.

Work Cell Configuration - Work with more flexibility and enjoy easier management of multiple work cells with a single system.

Projector Replacement - All configuration is memorized from the previous system if you need a replacement projector.
